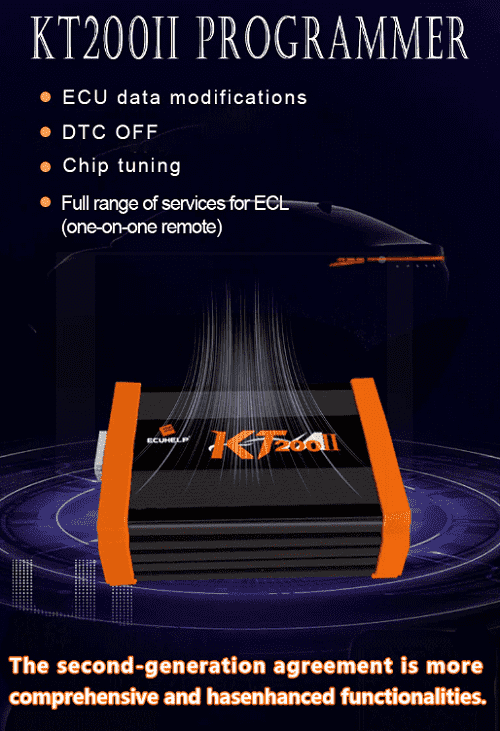

KT200II ECU Programmer Offline Upgrade ECU Protocols Over KT200
KT200II ECU Programmer Highlight:
1.New protocols have been added, and more and more will be added
frequently in the future.
2.Fixed the automatic checksum problem of the first generation
KT200, and the reading and writing efficiency has been greatly
improved.
3.Many new virtual files have been added to the server.
4.Strengthened the protection of ECU, and will prompt you
immediately if an operation error is made.
5.Optimized server access efficiency.
6.OBD reading and writing is stable.
7.Support DELPHI DCM7.24 ECU
8.Can work with htprog too
9.New automatic function: Tricore Clone
KT200II Free Download:
KT200II Software(Offline)
KT200II Software(Online)
KT200II Functions:
DTC Remove
immo off
Adblue off
DPF off
EGR off
Adiust the instrument
chip tuning
ECU data modifications
Full range of services of ECU(one-on-one remote)
What is ECU service?
ECU service Includes 2 major items:
1.Chip tuning
Chip tuning is to improve engine performance by modifying the data
read out by the equipment The data is divided into Stage 1 . Stage
2 and Stage 3
2.ECU maintenance.
ECU maintenance data is to repair software errors in the ECU and
some identity data of the ECU by modifying the data read by the
device. We provide the following items: DTC code Removal, EGR & DPF
Removal, IMMO OFF, releasing speed limit, mileage correction, Ho
start or Cold Start Vmax, and so on
KT200II ECU Programmer Product contents:
*Hardware
*Software
Auto version(basic version): Car OBD, Truck OBD, Full System, BDM/JTAG, TOOL BOOT Bench Mode,
TCU Gear
Full configuration version: Car OBD, Truck OBD, Tractor OBD, Boat OBD, Motorbike 0BD.Full
System, BDM/JTAG, TOOL BOOT, Bench Mode, TCU Gear,
Increaseable license: Tractor OBD, Boat OBD, Motorbike OBD, TCU Gear
NEW AUTOMATIC FUNCTION: TRICORE CLONE Added automation to clone the
following control units with OTP zone adaptation and password:
√ FCA EDC17CP27
√ HYUNDAI / KIA MED17.9.8
√ IVECO EDC17 C69
√ JAGUAR MEDC17.9
√ JAGUAR EDC17CP11
√ LAND ROVER MEDC17.9
√ LAND ROVER EDC17CP11
√ SUZUKI MED17.9.63
√ TOYOTA MED17.9.52
NEW FULL SYSTEMS FOR DELCO OPEL / CHEVROLET / GM ECUs:
We have added to the list of DELCO bench protocols already present,
also the complete management of the control units mounted on OPEL /
CHEVROLET / GM
cars: DELCO E38 DELCO E67 DELCO E84 DELCO E92
The possible operations are: Micro + EEPROM reading Micro + EEPROM
writing Recovery Checksums.
NEW FULL SYSTEM DRIVERS FOR BOSCH TCU ECUs:
6L45 6L50 6L80 6L90
Mounted on cars:
Cadillac, Chevrolet, Holden, GM, GMC, Hummer, Pontiac.
Micro + EEPROM reading
Micro + EEPROM writing
Recovery
NEW FULL SYSTEM DRIVER FOR MARELLI 8GMC ECU:
We have added complete management of the engine control unit
mounted on Fiat / Abarth:
MARELLI 8GMC
The possible operations are:
Micro + EEPROM reading
Micro + EEPROM writing
Recovery
Checksums
Top Reason to Choose KT200II ECU Programmer:
KT200 ll ECU Programmer is a complete tool for reading and
programming engine control units via OBD and via the Boot mode and
Jtag systems. Full system and Bench mode are also available. A
unique solution for the mechanics. TCU package for automatic
transmission is available.
1.KT200 ll allows serial communication with the Engine and
Automatic transmission control units via the OBD diagnostic socket
2. It also allows communication in BDM and JTAG, BOOT MODE, BENCH
MODE (or Service mode) FULL SYSTEM via pinout
3. Professional software for reading and programming the control
units of:
CAR TRUCK MOTORBIKE TRACTOR BOAT
* Additional TCU package available for Automatic Transmissions
KT200II Parameters:
Compatible operating systems: Windows 7. Widows 8/8.1. Widows 10,
Windows 11
Minimum recommended requirements: CPU>2.5 GHz (lntel i5,7) RAM
8GB
KT200II Language: Italian, English, Dutch, French, Spanish, Polish, Portuguese,
Czech, Romanian, Turkish
KT200II Auto Version Package Includes:
1pc x Master
1pc x BENCH box
2pcs x OBD wires
1pc x pinout line
4pcs x BOM adapters
3pcs x Transfer cables
4pcs x Power wire
1pc x Set of resistors
4pcs x Adapter plugs
5pcs x Power adapters
FAQ:
Q: KT200II what's new anymore?
A: Please read the KT200 II added Protocols.
Q: So the loyal users can change to new hardware?
A: yes. you only need to operate the following:
1. Send us the serial number of ecuhelp kt200 ;
2. We will lock the ecuhelp kt200;
3. Ship KT200II main device to you.
Q: I have kt200 full version with offline workstation. Kt200II will
be working offline too?
A: Yes, no problem.
Q: Accessoires and bench Box of kt200 is compatible New kt200II?
A: Yes, compatible.
Q: Is KT200II PCB compatible with the old case?
A: No.
