1. Excel in key adding for MLB models.
2. No Need to Remove the Chip.
3. Wireless Key Generation for Ultimate Convenience.
4. Immo Detection Made Easy.
5. Compatilility with Original Keys and Xhorse Specialized Keys.
6. Rewrite Uninitialized Key IDs.
7. No Need for On-Vehicle Data Collection.
8. Works with VVDI2 and VVDI Key Tool Plus.
9. No points required when using VVDI MLB specialized key.

Xhorse VVDI MLB Tool XDMLB0 Key Programmer

Product Highlights:

Ultra capable in reading, writing and calculating
No points required when using VVDI MLB specialized key

The following two scenarios require points deduction for MLB calculations:

1. When adding keys, points will be deducted to calculate the IMMO data.
2. When doing key recovery, the second-hand key has been initialized and unlocked, but does not have the IMMO data of the key. You need to deduct a few points to collect and calculate the IMMO data of the key before it can be restored.

Notice:
For the Original key
Unlocked uninitialized with id Can generate key directly to learn key
Unlocked and uninitialized without id Allows to change the id once.
Unlocked and initialized Can restore key to unlocked and uninitialized state by calculating anti-theft data No id
Locked and initialized original key cannot be unlocked.

Xhorse VVDI MLB TOOL Functions:

1. Work with VVDI2 / Key Tool Plus Pad for MLB immobilizer key learning, Support VVDI MLB special submachine, Support original key
VVDI2 requires VV-05 MQB and VV-02 VAG IMMO5 license activated

2.Excel in key Adding for MLB Models
Support adding keys for Audi, Porsche, Volkswagen, Lamborghini, Bentley, and other MLB vehicle models

3. No Need to Remove the Chip
Key data calculation requires only the disassembly of the key shell, with no need to remove the chip. Integrated with a 22k reader, it enables wireless key reading and writing without shell removal.

4. Wireless Key Generation for Ultimate Convenience
Generate original dealership keys and Xhorse specialized keys wirelessly.

5. Immo Detection Made Easy
Built-in Immo detection module supports wireless key recognition

6. Compatibility with Original Keys and Xhorse Specialized Keys
Support brand-new original keys (uninitiaIized/initiaIized) and can verify the status of the original keys. Support VVDI MLB specialized keys for unlimited reuse.

7. Rewrite Uninitialized Key IDs
Support rewriting uninitialized original key IDs.

8. No Need for On-Vehicle Data Collection
Simply collect key data, upload for calculation, and obtain Immo data without needing to access the vehicle.



Xhorse VVDI MLB TOOL Software Display:

Users are required to bind MLB-Tool with Xhorse App to perform immo data online calculation. Go to Special Function- Bind Device and scan QR code to bind device.
Software Update online, current version 1.0.3.0 (software free download),Operating system: Win10, Win11

MLB PC Software is required when you use with vvdi2. If use with vvdi key tool plus, connect MLB-Tool with KTP via the OTG converter. Then you collect key data, make dealer key and learn key all in the key tool plus.





FAQs:

Q: Points Cost and Collection Method Selection
A:
Collect the original vehicle key: 200 points.
Collect the original vehicle key, but you have a VVDI MLB key: waive the current collection points. Each MLB key can only waive points once.
Collecting a VVDI key: does not require points.

Q: Common Issues with Collection Failures
A:
VCC1 and VCC2 are reversed.
The capacitor was removed incorrectly.
Short circuit in soldering.
Data collection requires wireless reading of the key simultaneously; if the key is not positioned correctly, it will not be sensed.

Q: About Matching Devices
A:
MLB-TOOL can work with KEY TOOL PLUS or VVDI2.
For vehicles from 2023 onwards, due to SFD restrictions from manufacturers, SFD must be remotely unlocked before the matching device can be used.

Q: About Supported Keys
A:
Supports original keys and VVDI MLB keys. Other aftermarket keys are not guaranteed.

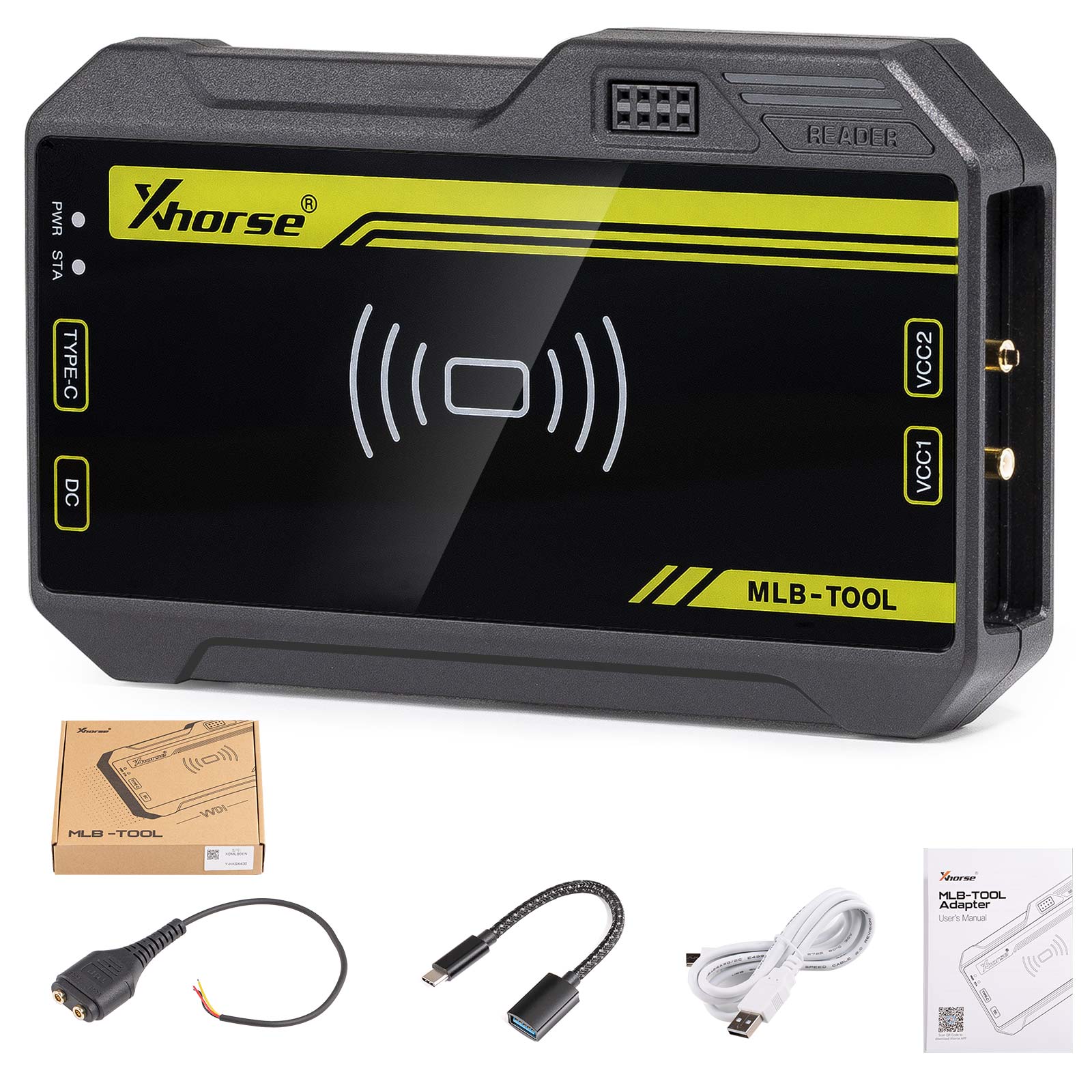

Package Includes:

1pc x MLB Tool
1pc x MLB Cable
1pc x USB Type C Cable
1pc x OTG Adapter
1pc x User Manual
